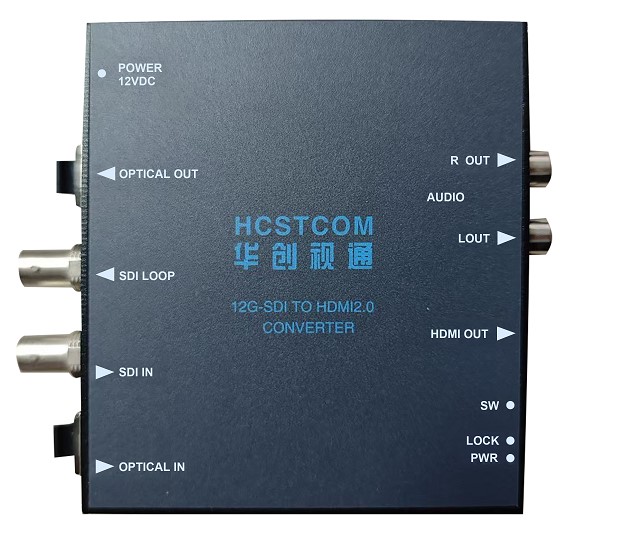

12G-SDI to HDMI2.0 Converter 12G-SDI to Fiber & HDMI2.0 Converter
1. Overview
The 12G-SDI to HDMI2.0 converter produced by Beijing HCSTCOM Co.,Ltd converts 12G-SDI signals to HDMI2.0, enabling ultra HD and 4K original images and HFR to achieve high fidelity. Itsupports 4K/ UHD HDMI or SDI signal to a long distance transmitted over fiber optic cable. It supports video source input from SDI port or Optical SFP port by DIP switch, supports1-ch 12G-SDI loop out with clock recovery function, 1-ch 12G-SDI optical SFP port output, and2-ch analog audio RCA output.It can be used together with our 12G-SDI fiber series products
2. Product features
? Convert 12G-SDI to HDMI 2.0, up to 4K60P;
? Supports 1-ch 12G-SDI input, or 1-ch 12G-SDI optical SFP port input;
? 1-ch 12G-SDI loopout, supports clock recovery function.
? 1-ch 12G-SDI SFP optical port output, supporting single-mode single-fiber transmission to 10-80km;
? supports HDMI embedded audio output, or de-embedded 2-ch analog audio RCA output;
? supports 10-bit 4:2:2 Input and Output up to 4K 60Hz;
?The SDI embedded audio supports 16 channels and 24 bits;
? AC-3 embedded Audio passthrough(Dolby Digital);
? LED display power supply and signal lock status;
? 12V dc power supply.
3.Technical Specifications
*The Converteruse approximately 10 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack with otherdevices.
